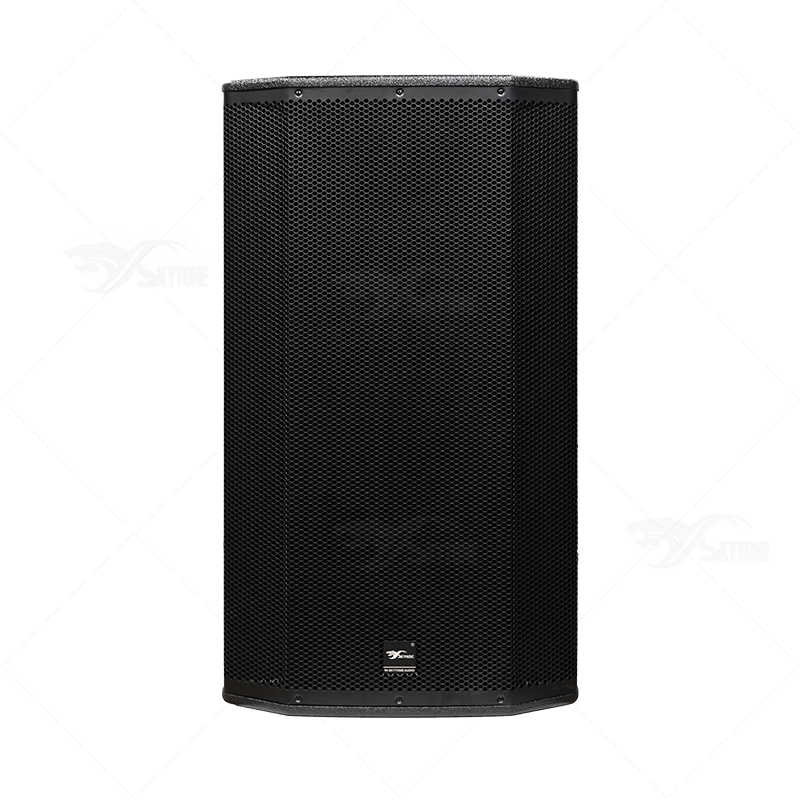

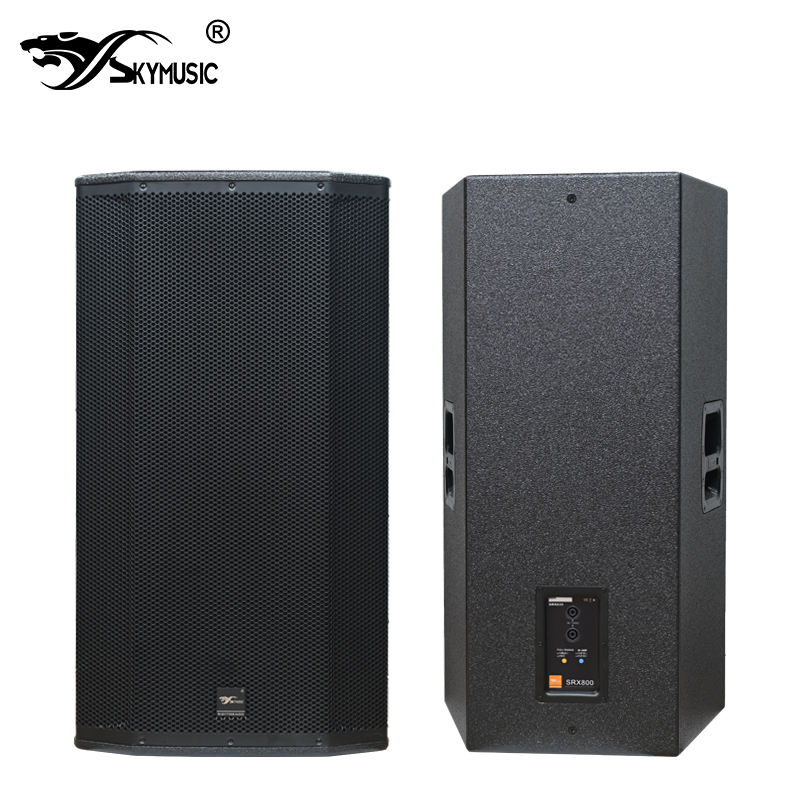

SRX835 15 inch 3-Way Point-Source Passive Speaker
Power Handling: 800W/1600W/3200W
Frequency Range: 32Hz-20kHz
Max SPL: 130dB (Peak)
Coverage Pattern: 60x40

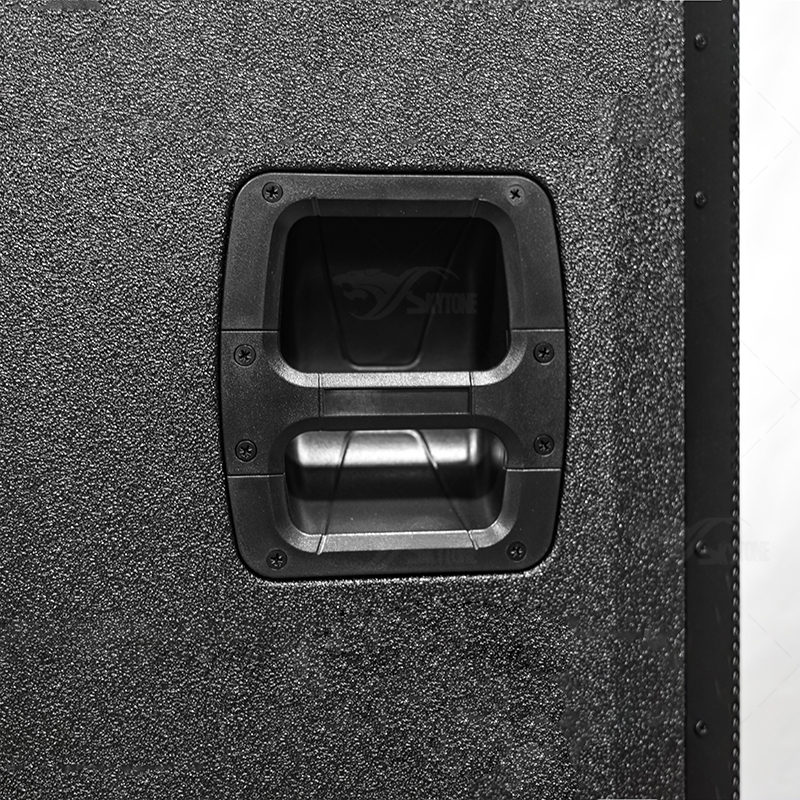

Every detail in the SRX800 Series was purposefully designed and through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling.
M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.
Enclosure Material: 18mm plywood

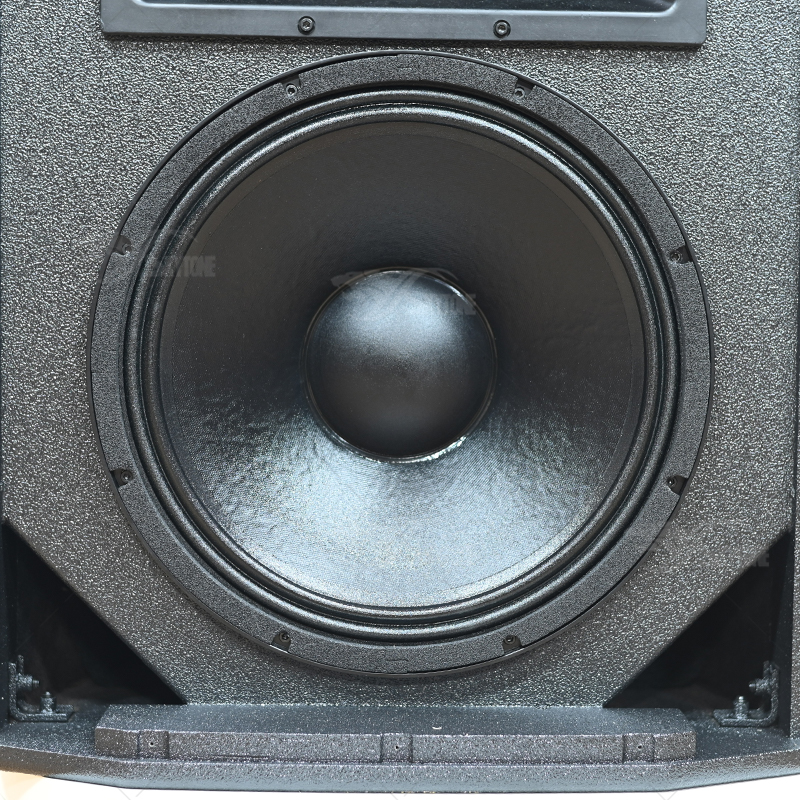

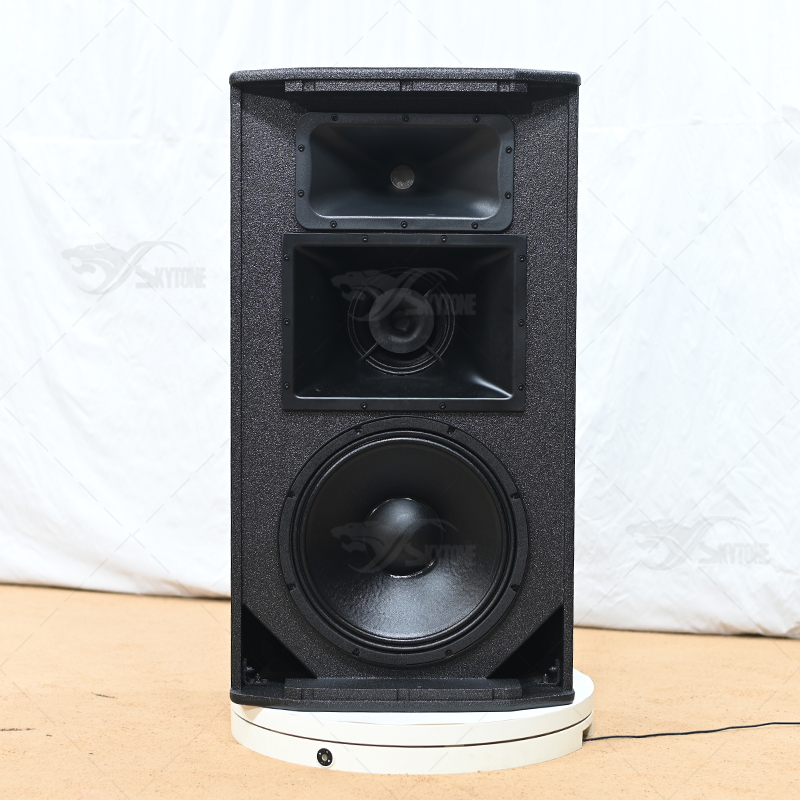

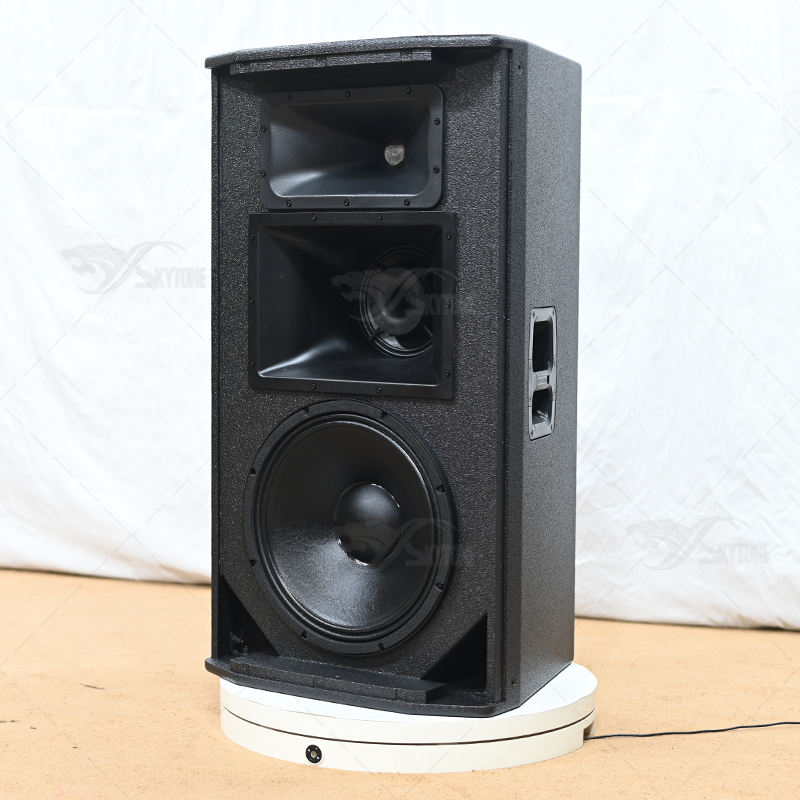

LF:1x15”Differential Drive Technology, 3" voice coils

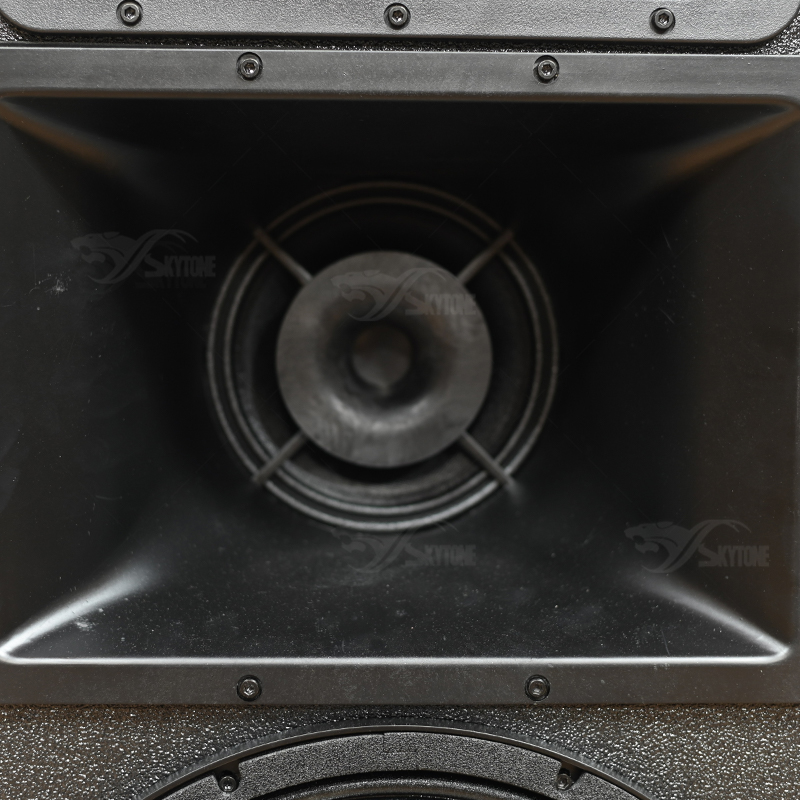

MF:1X 8"mid range woofer

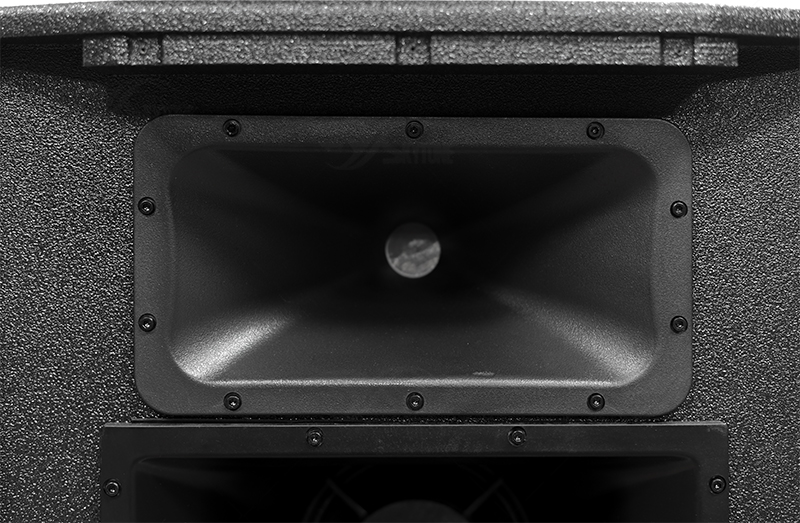

HF:1x2432H neodymium 3" voice coil compression driver
| Specifications: | |
| System: | |

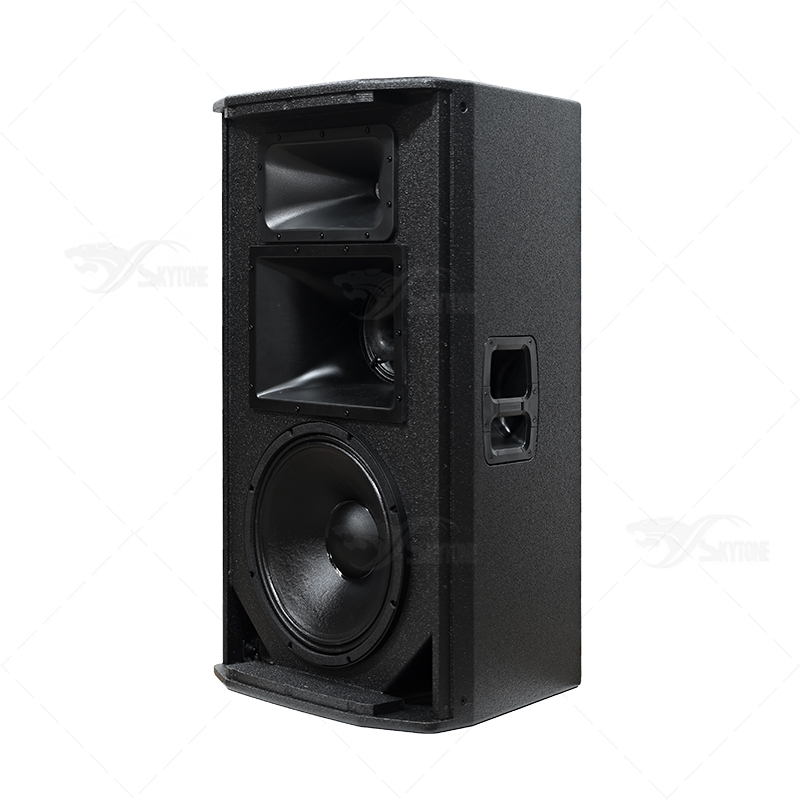

| System Type: | Passive 15”, three-way, bass-reflex |
| Maximum SPL Output: | 137dB |
| Frequency Range (-10dB): | 32hz - 20khz |
| Frequency Response (- 3dB): | 43hz - 20khz |
| Power: | |
| System Power Rating: | 3200W Peak, 1600W Program, 800W Continuous |
| Nominal Impedance: | 8 Ohm |

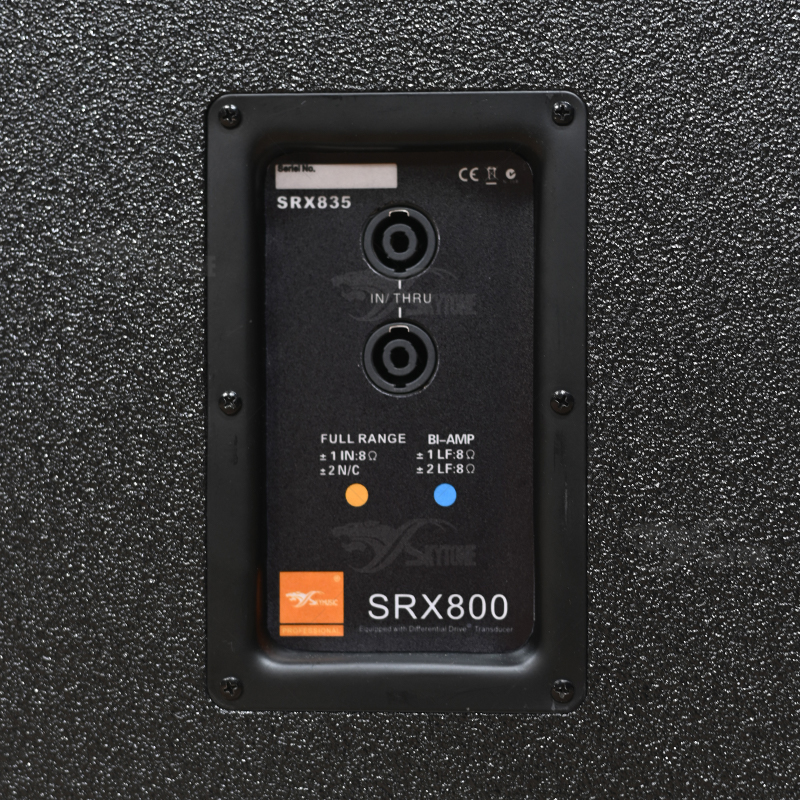

| Connectors: | NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable) |
| Speaker: | |

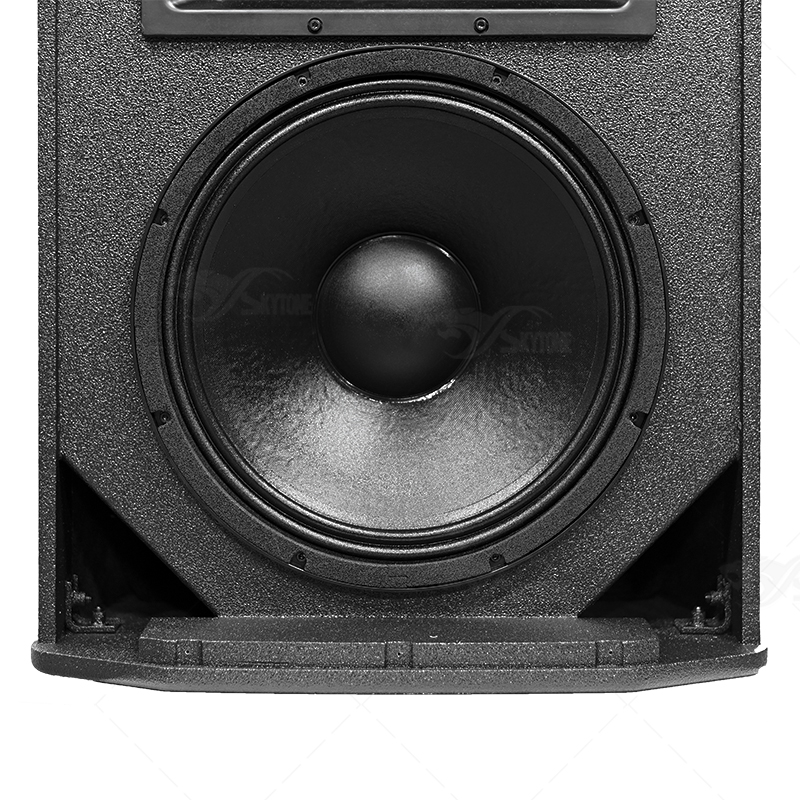

| LF Driver: | 1X15inch woofer |
| MF Driver: | 1X 8"mid range woofer |

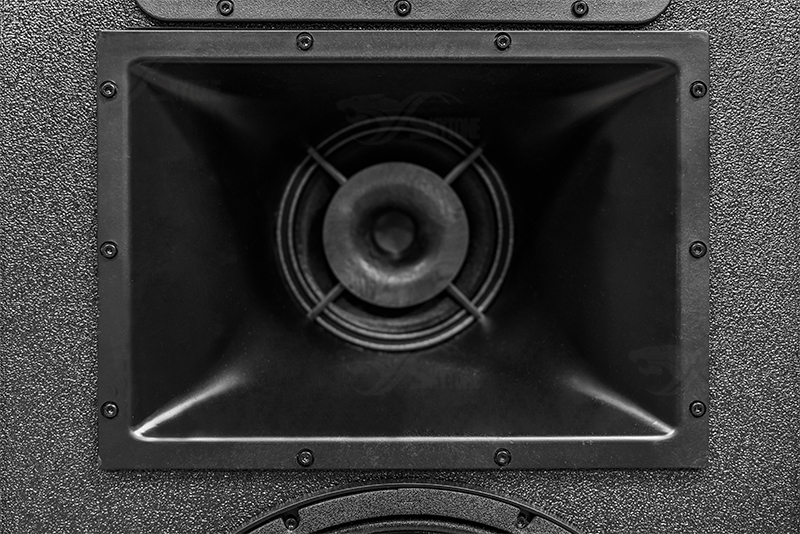

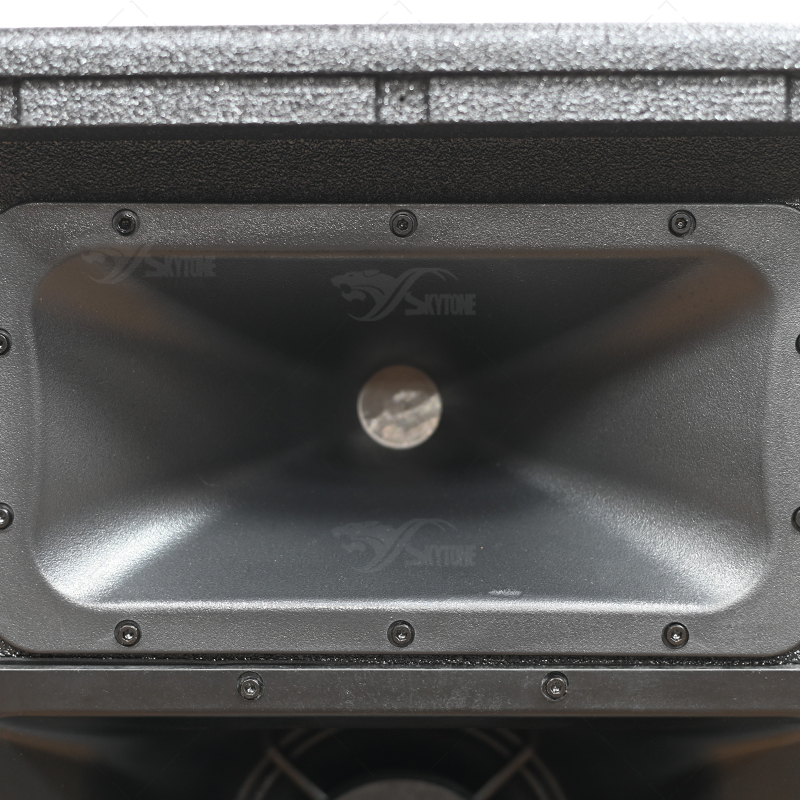

| HF Driver: | 1X2432H 3"neodymium magnet tweeter |
| Coverage Pattern: | 60° x 40° |
| Crossover Frequency: | 330hz & 2.4khz |
| Enclosure: | |
| Material: | 18mm plywood |
| Suspension/Mounting: | 12 x M10 Suspension points |
| Handles: | 2 |
| Finish: | Polyurea paint |

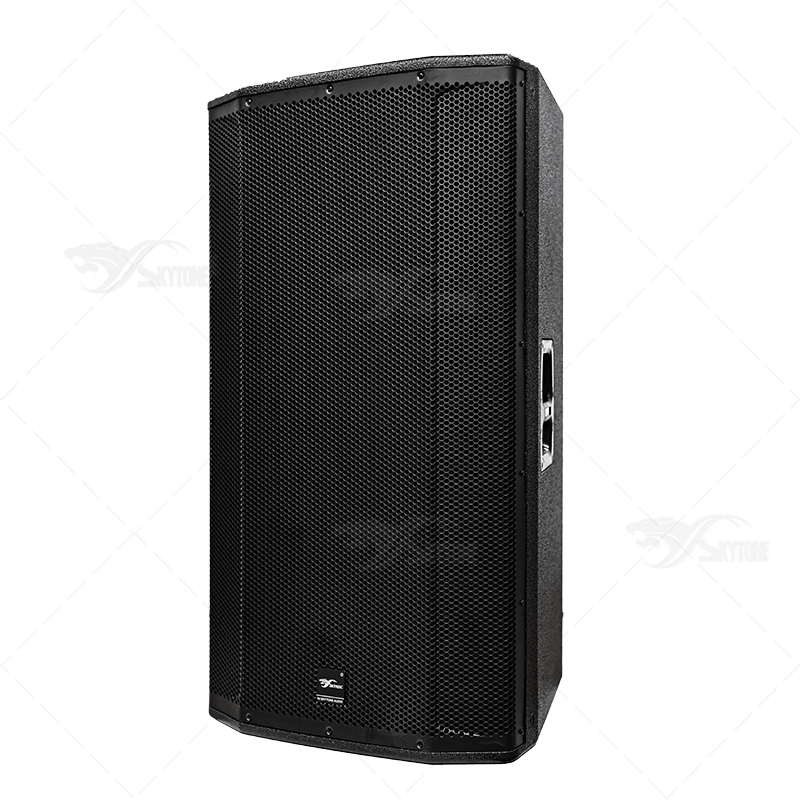

| Grille: | 14-gauge perforated steel |
| Dimensions (L x W x H): | 480mm x 550mm x 990mm |
| Weight: | 43.09kg |
| Shipping Weight: | 47.6kg |
